MB 160 Chemical pump

MB 160 Chemical Centrifugal Transfer Pump


MB 160 Chemical Centrifugal Transfer Pump

  • Pump capacity: up to 55 m³/hour
  • Diameter of solid particles: 9 mm
  • Available in: PP – PVDF
PDFMB 160 - Centrifugal Pump
Size: 271 Kb

MAIN FEATURES:

  • Pump capacity up to 55 m³/hour;
  • No welded connections;
  • Pumping liquids with solid and insoluble particles with diameter up to 9 mm;
  • Pumping viscous liquids up to 500 cPs;
  • Mechanical, lip or bellows seals;
  • Used for transferal of very contaminated liquids;
  • Easy maintenance and parts replacement;
  • Low cost of parts.

PERFORMANCE DIAGRAM

TECHNICAL DATA

Inlet opening G 2 1/2"f
Outlet opening G 2" m
Max. flow rate 55 m3/h
Max.head
34 m
Seal
TL - TS
Motor

kW - 7.5 / HP - 10
IP55 engine; F class;
2 poles, 50Hz, 3 phases

Construction material PP PVDF
Max. temperature
65 °C 95 °C
Weight 70 kg 73 kg

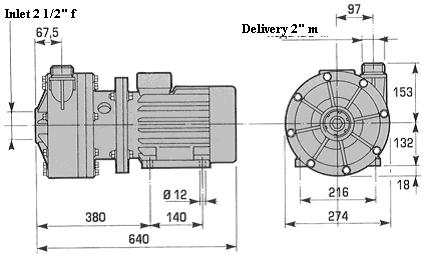

DIMENSIONS (mm)

MB-160
