Drum chemical pumps are used for pumping acids and alkalis, neutral, aggressive liquids from barrels and eurocubes

Each pump includes a submersible pump and motor, which are not submerged in liquid during operation. The pump section can be 900 or 1200 mm long.

The main competitive advantages of TR series pumps are low price and protection class of motors IP 54 (protection against dust and splashes) by default. Competitors have IP 54 motors that cost a lot more.

Drum pumps (drum pumps) are small-sized and especially convenient for pumping solvents, liquids from containers, including aggressive ones. Such a pump, immersed in liquid, does not need an internal mechanical seal (which most often wears out) and its design ensures that any liquid leaks, even accidental ones, are collected in the container.

The TR drum pump can be supplied with an electric or pneumatic motor. The open rotor ensures continuous pumping of clean corrosive liquids with a visible viscosity of up to 600 cP.

A distinctive feature of our barrel pumps is that they are designed, in contrast to similar pumps, in a sealless scheme (without mechanical seal), which significantly increases their reliability.

• Available in PP, PVDF, AISI 316
• Available with either electric or pneumatic motor
• Suitable for corrosive liquids
• Adjustable flow rate (pneumatic version)
• Dip tube length 900 mm - 1200 mm
• No mechanical seals
• Viscosity up to 600 cPs
• Flow rate up to 90 l/min
• Portable and easily dismantled
• Price /quality balance

DESCRIPTION

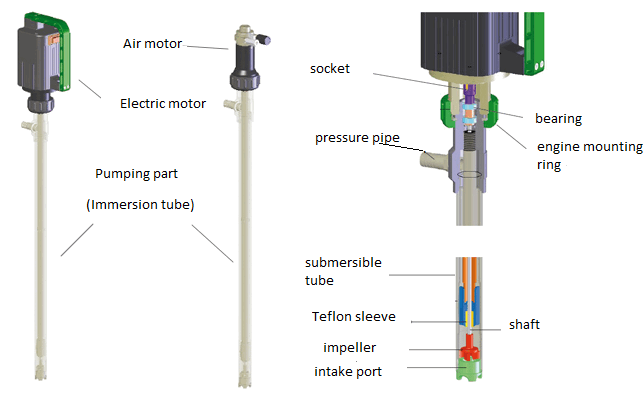

In the left part of the image shows, two embodiments appearance drum pumps TR (to the motor and the air motor). The right side shows the internal structure of the pump.

These drum transfer pumps consist of a dip tube, at the end of which there is the open impeller fitted to the drive shaft.  The last one is connected to the pump by means of a ring nut. At the same time transmission is provided by a shaft coupling.

Interpretation of the designation of pumps Debem TR

Here is an example of a pump designation: TR PH-1200-EL

• TR - a series of pumps
• P - pump part of polypropylene (F - PTFE, A - AISI 316 stainless steel).
• H - Hastelloy pump shaft (S - stainless steel)
• 1200 is the length of the immersion part in mm (it can also be 900 mm).
• EL - with electric motor (PN - with air motor)

Terms of use

The temperature of the pumped liquid should be from 0 to +65 °C - for the polypropylene version or up to + 95 °C for the polyvinylidene fluoride version of PVDF or stainless steel. The permissible fluid viscosity for an electric motor is 800 W up to 900 cps, and for an electric motor 500 W and for an air motor 250 W a viscosity up to 600 cps.
