FOODBOXER 80 Pumps Membrane Food

FOODBOXER 80 Pumps Membrane Food


FOODBOXER Diaphragm Food Pump complies with FDA requirements

  • Pump capacity up to 100 l/min
  • Connections – 1”
  • Available in AISI 316
PDF FOODBOXER 80 Diaphragm Pump
Size: 440 Kb

Main Features:

- Pump capacity up to 100 l/min
- Self-priming is up to 4 m
- Air supply without lubricant
- Fast adjusting while maintaining high pressure
- Wall installation is available
- Adjustable  expulsion and head
- Multi nozzle branch portion
- Dry running is available
- No electric connections
- Easy parts replacement
- Easy maintenance
STANDARD: II 3/3 GD c IIB T135°C (zone 2)
CONDUCT: II 2/2 GD c IIB T135°C (zone 1)

 - All materials, which are used for pump producing, meet the requirements of FDA

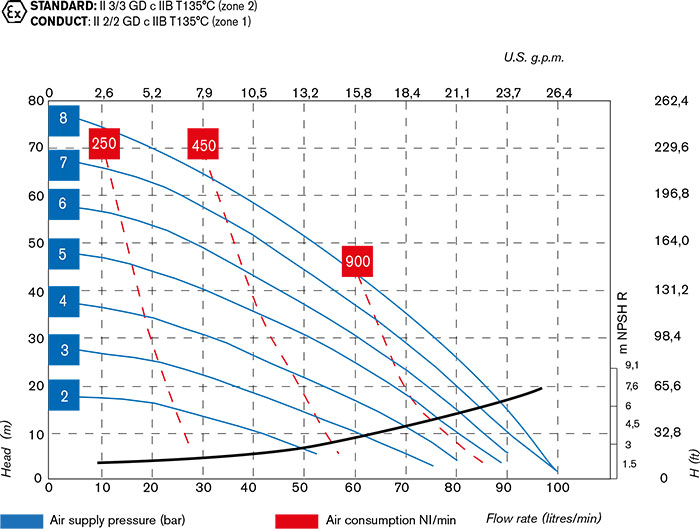

Performance Diagram

Performance Diagram foodboxer 80


Technical Data

Inlet/outlet openings CLAMP / DIN / G 1" f
Air opening G 3/8" f
Max. self-priming capacity 4 m
Max. flow rate 100 l/min
Max. discharge head 80 m
Max. air supply pressure 8 bar
Max.diameter of solid particles 4 mm
Constructing material AISI 316

Dimensions

FOODBOXER 80 Food-Processing Diaphragm Pumps
