FOODBOXER 502 High-performance Food Pump

FOODBOXER 502 High-performance Food Pump


FOODBOXER 502 Food Pump FDA Certified

  • Pump capacity up to 650 l/min
  • Connections 2”
  • Available in AISI 316
PDF FOODBOXER 502 High-Flow Diaphragm Pump
Size: 484 Kb

Main Features:

- Pump capacity up to 650 l/min
- Self-priming is up to 5 m
- Free flow mode is available
- Fast adjusting while maintaining high pressure
- Wall installation is available
- Adjustable expulsion and head
- Multi nozzle branch portion
- Dry running without difficulties is available
- No electric connections
- Easy parts replacement
- Easy maintenance
STANDARD: II 3/3 GD c IIB T135°C (zone 2)
CONDUCT: II 2/2 GD c IIB T135°C (zone 1)

 - All materials, which are used for pump producing, meet the requirements of FDA

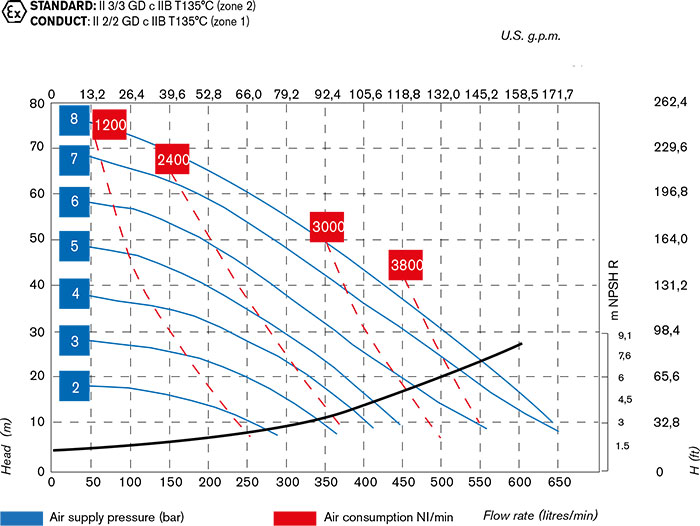

Performance Diagram

Performance Diagram Foodboxer 502


Technical Data

Inlet/outlet openings CLAMP / DIN / G 2" f
Air opening G 1/2" f
Max. self-priming capacity 5 m
Max. flow rate 650 l/min
Max. discharge head 80 m
Max. air supply pressure 8 bar
Max.diameter of solid particles 8 mm
Construction material Aisi 316

Dimensions
