MB 140 Chemical centrifugal pump

MB 140 Chemical Centrifugal Pump


MB 140 Chemical Centrifugal Pump

  • Pump capacity: up to 40 m³/hour
  • Diameter of solid particles: 12 mm
  • Available in: PP – PVDF
PDFMB 140 - Centrifugal Pump
Size: 271 Kb

MAIN FEATURES:

  • Pump capacity up to 40 m³/hour;
  • No welded connections;
  • Pumping liquids with solid and insoluble particles with diameter up to 12 mm);
  • Pumping viscous liquids up to 500 cPs;
  • Mechanical, lip or bellows seals;
  • Used for transferal of very contaminated liquids;
  • Easy maintenance and parts replacement;
  • Low cost of parts;

PERFORMANCE DIAGRAM

TECHNICAL DATA

Inlet opening G 2" m
Outlet opening G 1 1/2" m
Max. flow rate 40 m3/h
Max. discharge head 21 m
Seals TL - TS
Engine

kW - 3 / HP - 4
IP55 engine; F class;
2 poles, 50Hz, 3 phases

Constructing material PP PVDF
Max. temperature 65 °C 95 °C
Weight 29 kg 30 kg

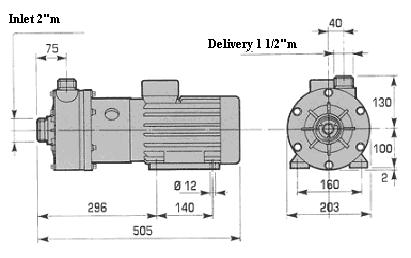

DIMENSIONS (mm)

MB-140
