MB 130 Centrifugal pump

MB 130 Horizontal Centrifugal Transfer Pump


MB 130 Horizontal Centrifugal Transfer Pump

  • Pump capacity: up to 30 m³/hour
  • Diameter of solid particles: 6 mm
  • Available in: PP – PVDF
PDFMB 130 - Centrifugal Pump
Size: 271 Kb

The centrifugal pump MB 130 is a horizontal chemical pump with a polypropylene PP or PTFE PVDF casing. Pumps chemical liquids with viscosity up to 500 cP and possible solids content up to 6 mm. The pump is equipped with a choice of mechanical seal: lip seal (TL) or bellows seal (TS).

MAIN FEATURES:

  • Pump capacity up to 30 m³/hour;
  • No welded connections;
  • Pumping liquids with solid particles (diameter of solid particles up to 6 mm);
  • Pumping viscous liquids up to 500 cPs;
  • Mechanical, lip or bellows seals;
  • Used for transferal of very contaminated liquids;
  • Easy maintenance and parts replacement;
  • Low cost of parts;

PERFORMANCE DIAGRAM

TECHNICAL DATA

Inlet opening G 2" m
Outlet opening G 1 1/2" m
Max. flow rate 30 m3/h
Max. discharge head 19 m
Seals TL - TS
Engine

kW - 2.2 / HP - 3
IP55 engine; F class;
2 poles, 50Hz, 3 phases

Constructing material PP PVDF
Max. temperature 65 °C 95 °C
Weight 22.5 kg 23.5 kg

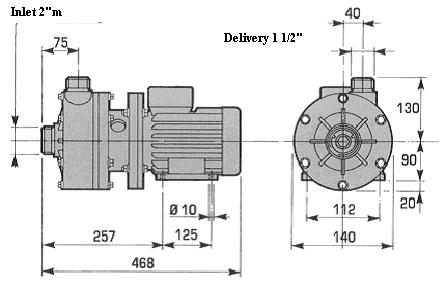

DIMENSIONS (mm)

MB-130

Video

Chemical centrifugal pump MB 130 TL (lip seal)

Lip seals - TL: VITON или EPDM

Chemical centrifugal pump MB 130 TS (mechanical seal bellows)

Mechanical seals bellows - TS
