TR-EL Electric Drum Transfer Pumps

TR-EL Electric Drum Transfer Pumps

  • Pump capacity: up to 90 l/min
  • Motor powert: 550 W Ex – 800 W
  • Available in: PP – PVDF – AISI 316 – Ex
PDFTR-EL Electric Drum Transfer Pumps
Size: 543 Kb

Electric Drum Transfer Pump TR-EL for pumping liquids from barrels, tanks, containers and other containers with a capacity of 5.4 m3/hour (90 l/min).

MAIN FEATURES:

- Different constructing materials of submersible part: PP, PVDF, AISI 316, Ex;
- Full interchangeability: either electric or pneumatic motor;
- Max. pump capacity up to 90 l/min;
- Pumping corrosive liquids with viscosity of 900 cPs;
- Length of submersible part ranging 700, 900, 1000, 1200 mm;
- No mechanic seals;
- Portable and easily dismantled;
- Equipped with a protection system for any restart;
- Perfect price/quality balance.

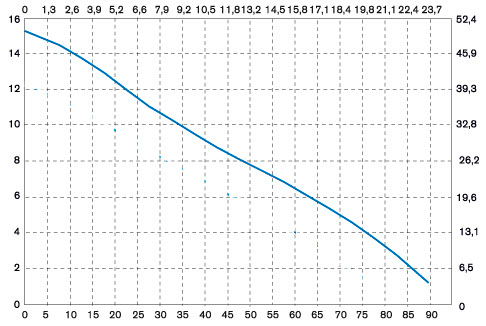

PERFORMANCE DIAGRAM

PERFORMANCE DIAGRAM TR-EL

TECHNICAL DATA

MOTOR MODEL 800W 550W ATEX
Execution of the electric motor of the pump

Электрический бочковый насос TR-EL 800W

Электрический бочковый насос TR-EL 550W - ATEX

Execution of the submersible part of the pump
TRP TRF TRA TRAX
PP PVDF AISI 316 AISI 316 Ex
Intake port. mat. 900 / 1200 mm
Hose clamp Ø 25
Max. temp.
65°C 95°C 95°C 95°C
Flow rate 90 l/min 80 l/min
Voltage 230V 50/60 Hz
Class F
Protection IP 54
Viscosity 900 cps 600 cps
Weight, kg 3.7 11

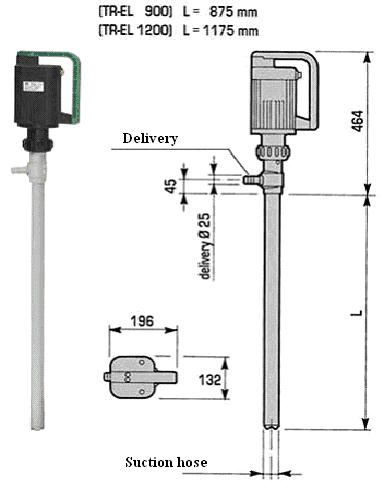

DIMENSIONS (mm)

TR_EL
