MB 155 Chemical plastic pump
MB 155 Chemical Centrifugal Pump
- Pump capacity: up to 45 m³/hour
- Diameter of solid particles: 3 mm
- Available in: PP – PVDF
 MB 155 - Centrifugal PumpSize: 271 Kb |
The chemical plastic pump MB 155 is a horizontal centrifugal pump with a polypropylene PP or PTFE PVDF casing. Pumps chemical liquids with viscosity up to 500 cP and possible solids content up to 2 mm. The MB 155 plastic chemical pump is equipped with a choice of mechanical seal: lip seal (TL) or bellows seal (TS)
MAIN FEATURES:
- Pump capacity up to 45 m3/hour;
- No welded connections;
- Pumping liquids with solid and insoluble particles with diameter up to 3 mm;
- Pumping viscous liquids up to 500 cPs;
- Mechanical, lip or bellows seals;
- Used for transferal of very contaminated liquids;
- Easy maintenance and parts replacement;
- Low cost of parts;
PERFORMANCE DIAGRAM
TECHNICAL DATA
| Inlet opening | G 2 1/2"f | |
| Outlet opening | G 2" m | |
| Max. flow rate | 45 m3/h | |
| Max. discharge head | 31 m | |
| Seals | TL - TS | |
| Engine |
kW - 5.5 / HP - 7.5 |
|
| Constructing material | PP | PVDF |
| Max. temperature | 65 °C | 95 °C |
| Weight | 60 kg | 63 kg |

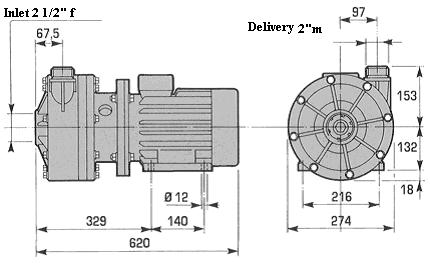

DIMENSIONS (mm)
Video
Chemical centrifugal pump MB 155 TL (lip seal)
Chemical centrifugal pump MB 155 TS (mechanical seal bellows)
