FOODBOXER 150 Hygienic Food Pump

    Equipment › FDA BOXER - Food-Processing Diaphragm Pumps › FOODBOXER 150 Hygienic Food Pump

FOODBOXER 150 Food-Processing Diaphragm Pumps

Hygienic Food Pump FOODBOXER 150 stainless steel for the food industry

  • Pump capacity up to 220 l/min
  • Connections 1” 1/4
  • Available in AISI 316
PDF FOODBOXER 150 Diaphragm Pumps
Size: 490 Kb

Main Features:

- Pump capacity up to 220 l/min
- Self-priming is up to 4 m
- Free flow mode is available
- No need in lubricated air
- Fast adjusting while maintaining high pressure
- Wall installation is available
- Adjustable  expulsion and head
- Multi nozzle branch portion
- Dry running is available
- No electric connections
- Easy parts replacement
- Easy maintenance
- STANDARD: II 3/3 GD c IIB T135°C (zone 2)
- CONDUCT: II 2/2 GD c IIB T135°C (zone 1)

 - All materials, which are used for pump producing, meet the requirements of FDA

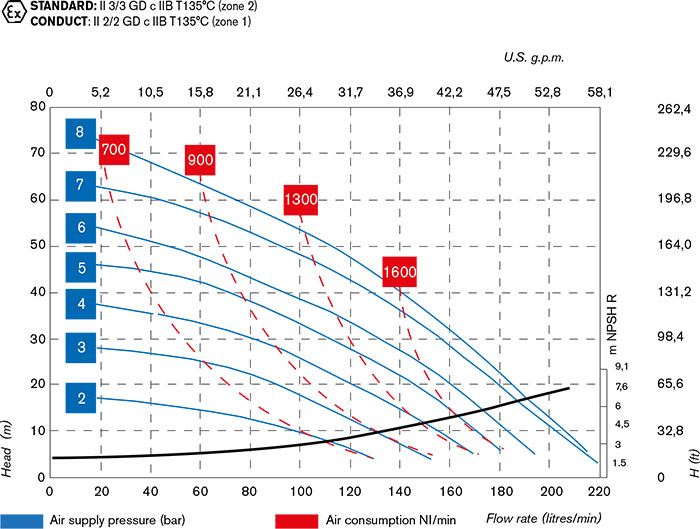

Performance Diagram

FOODBOXER 150 Food-Processing Diaphragm Pumps

Technical Data

Inlet/ outlet openings CLAMP / DIN / G 1" 1/4 f
Air opening G 1/2" f
Max. self-priming capacity 4 m
Max. flow rate 220 l/min
Max. discharge head 80 m
Max. air supply pressure 8 bar
Max.diameter of solid particles 5 mm
Construction material AISI 316

Codes

  • FB150-A-HTAAT--
  • FB150-A-HTAAT--

Dimensions

FOODBOXER 150 Food-Processing Diaphragm Pumps
