BOXER 502 Metal High Performance Diaphragm Pump

BOXER 502 Metal High-Productivity Diaphragm Pump

  • Pump capacity  650 l/min
  • Openings - 2”
  • Available in: ALU - AISI 316
PDF BOXER 502 High Productivity Diaphragm Pump
 Size: 1.6 Mb
The BOXER 502 high productivity diaphragm pump has a casing made of ALU aluminum or AISI 316 stainless steel. The BOXER 502 diaphragm pump can be used in harsh industrial conditions, in hazardous areas, for pumping liquids of various viscosities.

The pump capacity reaches 600 l / min, the maximum height of the liquid column in self-priming mode is 4 meters. They work stably even in the presence of insoluble solids in the working substance. The performance of the equipment is adjustable by the user in the range from 0 to 100% without pressure loss. This pump is powered by a compressor, pneumatic line

MAIN FEATURES:

- Pump capacity up to 650 l/min
- Self-priming up to 5 m
- Free flow mode is available
- Fast adjusting while maintaining high pressure
- Wall installation is available
- Adjustable  expulsion and head
- Multi nozzle branch portion
- Dry running without difficulties is available
- No electric connections
- Easy parts replacement
- Easy maintenance
- STANDARD: II 3/3 GD c IIB T135°C (zone 2)
- CONDUCT: II 2/2 GD c IIB T135°C (zone 1)

PERFORMANCE DIAGRAM

BOXER 502 Metal High Performance Diaphragm Pump

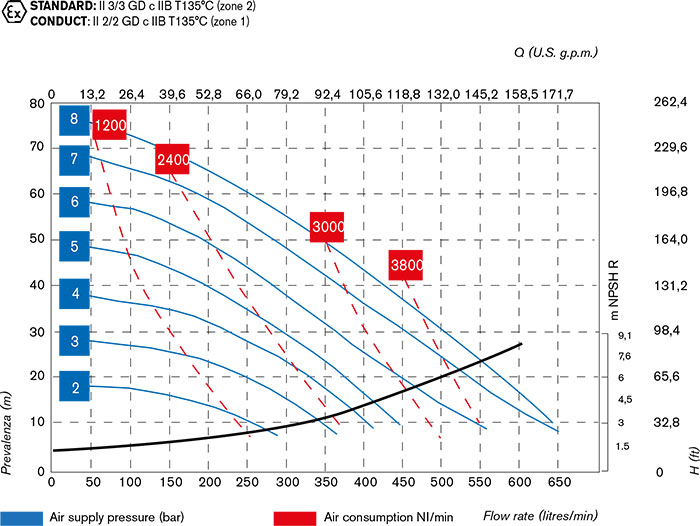

This figure shows the dependence of the head and pump capacity on the pressure and airflow of the compressor. The higher the compressed air pressure, the greater the head and the higher the performance curve, in turn, the speed of pumping liquid is regulated by changing the airflow rate.

For example, at a pressure of 7 bar, the optimal operating mode will be to pump 200 l / min with a head of 51 meters, and the airflow will be 2400 nL / min

TECHNICAL DATA

Inlet/outlet openings G 2" f or DN 50
Air opening G 1/2" f
Dry self-priming capacity 5 m
Max. flow rate 650 l/min
Max. discharge head 80 m
Max. air supply pressure 8 bar
Max. diameter of solid particles 8 mm
Constructing material Alu AISI 316
Max. temperature 95 °C 95 °C
Weight 49 kg 54 kg

DIMENSIONS (mm)

BOXER 502 Metal High Performance Diaphragm Pump
