Compressor

VICAQA company sells compressors for diaphragm pumps. The pneumatic diaphragm pump is powered by compressed air from the compressor. From the compressor to the pump, compressed air enters the air exchanger (distribution mechanism). By means of compressed air, the air exchanger tactfully moves either to the left or to the right, thereby pushing the membranes. Thus, the entire operation of the diaphragm pump occurs in 2 steps.

Compressors for diaphragm pumps

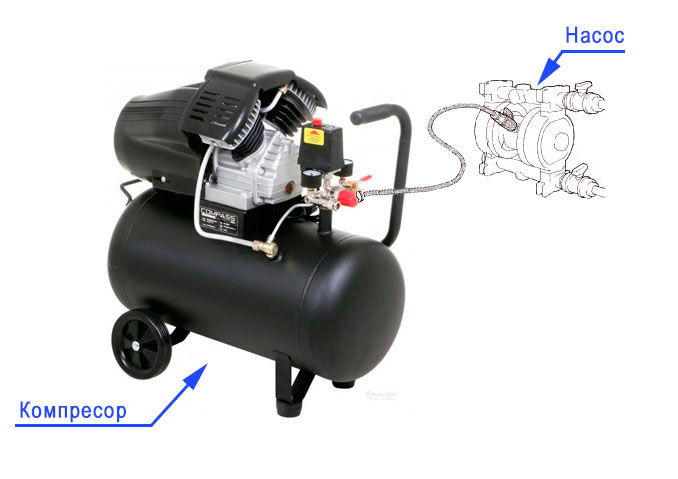

Compressor for dipahragm pumps

Example: pump performance graph

Пример: график производительности насоса

This figure shows the dependence of the head and pump capacity on the pressure and air flow of the compressor. The higher the compressed air pressure, the greater the head and the higher the performance curve, in turn, the speed of pumping liquid is regulated by changing the air flow rate.

For example, at a pressure of 7 bar, the optimal operating mode will be pumping 30 l / min with a head of 38 meters, and the air flow rate will be 450 nL / min.

Piston compressors

VKP F Industrial series (Fini Italy)
VKP LB Air Force series (Lacma China)
VKP R Advanced Series (Rіbao Taiwan)
Direct drive (household)

Screw compressors

Direct drive
Belt driven
Belt driven on receiver
