MB 150 Horizontal Type Centrifugal Pump

MB 150 Horizontal Centrifugal Pump


MB 150 Horizontal Centrifugal Pump

  • Pump capacity: up to 42 m³/hour
  • Diameter of solid particles: 2 mm
  • Available in: PP – PVDF
PDFMB 150 - Centrifugal Pump
Size: 271 Kb

The centrifugal pump MB 150 is a horizontal type chemical pump with a casing made of polypropylene PP or PTFE PVDF. Pumps chemical liquids with viscosity up to 500 cP and possible solids content up to 2 mm. The centrifugal pump MB 150 horizontal type is equipped with a mechanical seal, optionally: lip (TL) or bellows (TS)

MAIN FEATURES:

  • Pump capacity up to 42 m³/hour;
  • No welded connections;
  • Pumping liquids with solid and insoluble particles with diameter up to 2 mm;
  • Pumping viscous liquids up to 500 cPs;
  • Mechanical, lip or bellows seals;
  • Used for transferal of very contaminated liquids;
  • Easy maintenance and parts replacement;
  • Low cost of parts.

PERFORMANCE DIAGRAM

TECHNICAL DATA

Inlet opening G 2 1/2"f
Outlet opening G 2" m
Max. flow rate 42 m3/h
Max. discharge head 25 m
Seals TL - TS
Engine

kW - 4 / HP - 5.5
IP55 engine; F class;
2 poles, 50Hz, 3 phases

Constructing material PP PVDF
Max. temperature 65 °C 95 °C
Weight 42 kg 45 kg

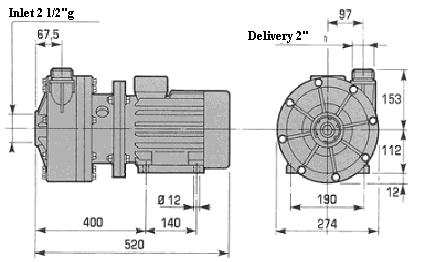

DIMENSIONS (mm)

MB-150

Video

Chemical centrifugal pump MB 150 TL (lip seal)

Lip seals - TL: VITON или EPDM

Chemical centrifugal pump MB 150 TS (mechanical seal bellows)

Mechanical seals bellows - TS
