MB 120 Horizontal centrifugal pump
MB 120 Horizontal Centrifugal Pump
- Pump capacity: up to 25 m³/hour
- Diameter of solid particles: up to 6 mm
- Available in: PP – PVDF
 MB 120 - Centrifugal PumpSize: 271 Kb |
The MB 120 horizontal centrifugal pump is a chemical pump with a polypropylene PP or PTFE PVDF casing. Pumps chemical liquids with viscosity up to 500 cP and possible solids content up to 6 mm. The MB 120 horizontal centrifugal pump is equipped with a choice of mechanical seal: lip seal (TL) or bellows seal (TS)
MAIN FEATURES:
- Pump capacity up to 25 m³/hour;
- No welded connections;
- Pumping (diameter of solid particles up to 6 mm);
- Pumping viscous liquids up to 500 cPs;
- Mechanical, lip or bellows seals;
- Used for transferal of very contaminated liquids (TS seals);
- Easy maintenance and parts replacement;
- Low cost of parts;
PERFORMANCE DIAGRAM
TECHNICAL DATA
| Inlet opening | G 2" m | |
| Outlet opening | G 1 1/2" m |
|
| Max. flow rate | 25 m3/h | |
| Max. discharge head | 18 m | |
| Seals | TL - TS |
|
| Engine |
kW - 1.1 / HP - 1.5 |
|
| Constructing material | PP | PVDF |
| Max. temperature | 65 °C | 95 °C |
| Weight | 20 kg | 21 kg |

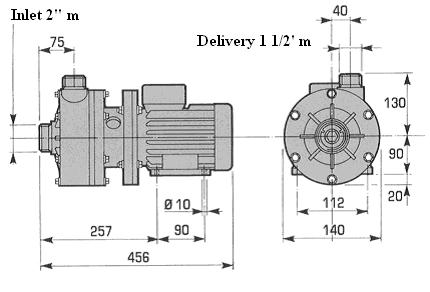

DIMENSIONS (mm)
Video
Chemical centrifugal pump MB 120 TL (lip seal)
Chemical centrifugal pump MB 120 TS (mechanical seal bellows)
