Дозирующие насосы

DM 15


Насосы с магнитной муфтой
DM 15

Производительность – до 23,5 м³
Отверстие забора – 1” 1/2
Отверстие подачи – 1” 1/4

DM 15

PDF DM 15
Насосы с магнитной муфтой

Размер: 271 Kб

Варианты исполнения

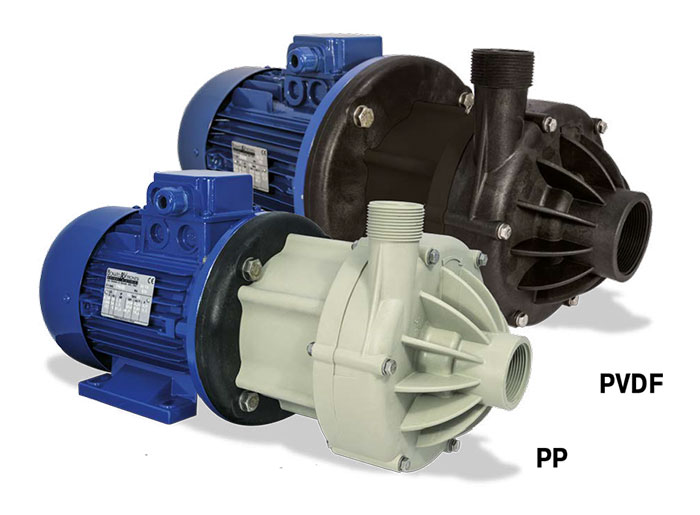

Насосы с магнитной муфтой DM15

NEW 01/2012 A couple of magnets leads the operation of the pump; the outer magnet placed on the drive shaft transmits the motion to the inner magnet integrated with the impeller that is hermetically insulated. The pump impeller is not physically fixed to the drive shaft, seals are therefore eliminated and this consequently avoids leakages of the liquid drawn by the pump which are usually due to its wear and tear. The pump head is manufactured with few components, thus the maintenance of which becomes extremely easy. The materials used as standard are polypropylene (pp) and polyvinylidene fluoride (pvdf).
The pumps can’t run dry. Dirty liquids can reduce the pump life
Working temperatures: PP min -10/max 65°c - PVDF min -10/max 90°c.


График производительности

dm15

Технические характеристики

Construction materials
PP, PVDF
Intake connection (standard) G 1” 1/2 F BSP / NPT
Delivery connections (standard) G 1” 1/4 M BSP / NPT
Max. flow rate
23,5 m3/h
Max. head
19,8 m
Max. viscosity 150 cps
Max. operating temp. PP -10°C/65°C - PVDF -10°C/90°C


Размеры

dm15

 model motor size power A B
C
E F G H L M N O P PP, кг PVDF, кг
DM15 IEC 90 1.5 Kw 489
408
81
1” 1/4
1” 1/2 298
125
35
62
90
125
140
-
-
DM15 IEC 90
2.2 Kw 489
408
81
1” 1/4 1” 1/2 298
125
35
62
90
125
140
-
-
DM15 NEMA 145 TC
3 Hp 530
449
81
1” 1/4 1” 1/2 327
127
34
62
88
125
139
-
-
