TR-PN

Pneumatic Drum Transfer Pumps


TR-PN
Pneumatic Drum Transfer Pumps

Pump capacity: up to 120 l/min
Motor powert: 500 – 550 – 800 W
Available in: PP – PVDF – AISI 316 – Ex

PNEUMATIC DRUM TRANSFER PUMP TR –PN

MAIN FEATURES:

- Different constructing materials of submersible part: PP, PVDF, AISI 316;
- Full interchangeability: either electric or pneumatic motor;
- Max. pump capacity up to 120 l/min;
- Ability to adjust flow rate;
- Pumping corrosive liquids with viscosity of 600 cPs;
- Length of submersible part ranging 700, 900, 1000, 1200 mm;
- No mechanic seals;
- Portable and easily dismantled;
- Equipped with a protection system for any restart;
- Perfect price and quality balance.

CONSTRUCTION MATERIALS:

TR-PN 250W
TR-PN 300W
TR-PN 400W
250 W 300 W
400 W


PERFORMANCE DIAGRAM

График производительности TR-PN



TECHNICAL DATA

Model 250W 300W 400W

TR-PN 250W
TR-PN 300W
TR-PN 400W
Constructing material of submersible part
TRP TRF TRA TRAX
PP PVDF AISI 316 AISI 316 Ex
Ø 42  Ø 40 Ø 42.5 Ø 42.5
900/1200 900/1200 900/1200 700/1000/1200
Ø 25
60°C 95°C 95°C 95°C
Submersible part (tube), mm
Length of submersible part, mm
Outlet nozzle, mm
Max. temperature
Pump capacity 80 l/min 90 l/min 120 l/min
Motor voltage 0,33 HP – 7 bar 0,40 HP – 6 bar 0,54 HP – 6 bar
Viscosity 600 cps 400 cps 600 cps
Weight, kg 1.1 3 -

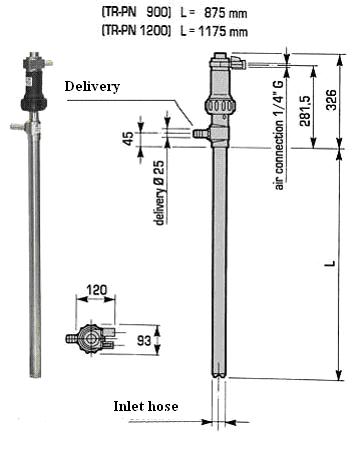

DIMENSIONS (mm)

TR_PN
